MouseMux V2 SDK Manual

using System;
using System.Drawing;
using System.Runtime.InteropServices;
using System.Windows.Forms;

public class MouseMuxSDK : Form
{
    [DllImport("user32.dll")]
    public static extern int RegisterWindowMessage(string lpString);

    [DllImport("user32.dll")]
    public static extern IntPtr FindWindow(string lpClassName, string lpWindowName);

    [DllImport("user32.dll")]
    public static extern bool PostMessage(IntPtr hWnd, uint Msg, IntPtr wParam, IntPtr lParam);

    private const int LIST_SIZE = 64;
    private int HWID = -1;
    private struct HWIDInfo
    {
        public int hash;
        public int hwid;
    }
    private HWIDInfo[] hlist = new HWIDInfo[LIST_SIZE];

    private Label hwidLabel;
    private Bitmap drawingBitmap;
    private Point? lastPoint = null;

    // Button flags as per SDK documentation
    [Flags]
    public enum DataButtonFlag
    {
        DATA_BUTTON_FLAG_1_DN = 1 << 0,  // left down
        DATA_BUTTON_FLAG_1_UP = 1 << 1,  // left up
        DATA_BUTTON_FLAG_2_DN = 1 << 2,  // right down
        DATA_BUTTON_FLAG_2_UP = 1 << 3,  // right up
        DATA_BUTTON_FLAG_3_DN = 1 << 4,  // middle down
        DATA_BUTTON_FLAG_3_UP = 1 << 5,  // middle up
        DATA_BUTTON_FLAG_4_DN = 1 << 6,  // X1 down
        DATA_BUTTON_FLAG_4_UP = 1 << 7,  // X1 up
        DATA_BUTTON_FLAG_5_DN = 1 << 8,  // X2 down
        DATA_BUTTON_FLAG_5_UP = 1 << 9   // X2 up
    }

    private static string[] messageNames = {
        "mousemux.api.get.none",
        "mousemux.api.get.user.create",
        "mousemux.api.get.user.dispose",
        "mousemux.api.get.user.list",
        "mousemux.api.get.user.motion",
        "mousemux.api.get.user.button",
        "mousemux.api.get.user.v.wheel",
        "mousemux.api.get.user.h.wheel",
        "mousemux.api.get.user.keyboard"
    };

    private static string[] setterMessageNames = {
        "mousemux.api.set.app.user.list"
    };

    private static int[] messageCodes = null;
    private static int[] setterMessageCodes = null;
    private const string SETTER_WINDOW_NAME = "mousemux-api-window-setter";

    public MouseMuxSDK()
    {
        this.Text = "mousemux-api-window-getter";
        this.Width = 800;
        this.Height = 600;
        this.DoubleBuffered = true;

        hwidLabel = new Label
        {
            Text = "HWID: -1",
            Dock = DockStyle.Top,
            Font = new Font("Consolas", 12, FontStyle.Bold),
            Height = 30
        };
        this.Controls.Add(hwidLabel);

        drawingBitmap = new Bitmap(this.ClientSize.Width, this.ClientSize.Height);
        this.Paint += (s, e) => e.Graphics.DrawImage(drawingBitmap, 0, 0);
        this.Resize += (s, e) =>
        {
            var newBitmap = new Bitmap(this.ClientSize.Width, this.ClientSize.Height);
            using (var g = Graphics.FromImage(newBitmap))
            {
                g.DrawImage(drawingBitmap, 0, 0);
            }
            drawingBitmap = newBitmap;
            this.Invalidate();
        };

        RegisterMessages();
        RequestUserList();
    }

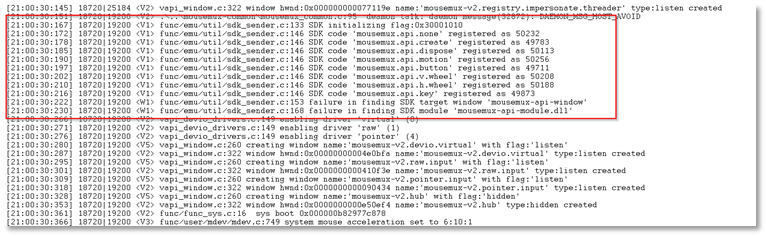

    private void RegisterMessages()
    {
        messageCodes = new int[messageNames.Length];
        for (int i = 0; i < messageNames.Length; i++)
        {
            messageCodes[i] = RegisterWindowMessage(messageNames[i]);
            Console.WriteLine($"Registered getter {messageNames[i]}: {messageCodes[i]}");
        }

        setterMessageCodes = new int[setterMessageNames.Length];
        for (int i = 0; i < setterMessageNames.Length; i++)
        {
            setterMessageCodes[i] = RegisterWindowMessage(setterMessageNames[i]);
            Console.WriteLine($"Registered setter {setterMessageNames[i]}: {setterMessageCodes[i]}");
        }
    }

    private void RequestUserList()
    {
        IntPtr setterHwnd = FindWindow(SETTER_WINDOW_NAME, SETTER_WINDOW_NAME);
        if (setterHwnd != IntPtr.Zero)
        {
            int listMessage = setterMessageCodes[0]; // mousemux.api.set.app.user.list
            Console.WriteLine("Requesting user list from MouseMux...");
            PostMessage(setterHwnd, (uint)listMessage, IntPtr.Zero, IntPtr.Zero);
        }
        else
        {
            Console.WriteLine("Could not find MouseMux setter window");
        }
    }

    // Utility functions for parameter extraction
    private int ExtractHash(IntPtr wParam) => (int)(wParam.ToInt64() & 0xFFFF); // LOWORD
    private int ExtractUid(IntPtr wParam) => (int)((wParam.ToInt64() >> 16) & 0xFFFF); // HIWORD
    private int ExtractHwid(IntPtr lParam) => (int)lParam.ToInt64(); // full 32-bit HWID

    private (int x, int y) ExtractCoordinates(IntPtr lParam)
    {
        // Implement GET_X_LPARAM and GET_Y_LPARAM macro logic
        int x = (int)(short)(lParam.ToInt64() & 0xFFFF);        // GET_X_LPARAM
        int y = (int)(short)((lParam.ToInt64() >> 16) & 0xFFFF); // GET_Y_LPARAM
        return (x, y);
    }

    // Message handlers
    private void HandleUserCreate(string name, Message m)
    {
        int hash = ExtractHash(m.WParam); // hashed 16-bit HWID
        int uid = ExtractUid(m.WParam);   // user id
        int hwid = ExtractHwid(m.LParam); // full 32-bit HWID
        Console.WriteLine($"Call '{name}' hash:{hash:X} uid:{uid} hwid:{hwid:X}");
    }

    private void HandleUserDispose(string name, Message m)
    {
        int hash = ExtractHash(m.WParam);
        int uid = ExtractUid(m.WParam);
        int hwid = ExtractHwid(m.LParam);
        Console.WriteLine($"Call '{name}' hash:{hash:X} uid:{uid} hwid:{hwid:X}");
    }

    private void HandleUserList(string name, Message m)
    {
        int hash = ExtractHash(m.WParam);
        int uid = ExtractUid(m.WParam);
        int hwid = ExtractHwid(m.LParam);
        hlist[uid].hash = hash;
        hlist[uid].hwid = hwid;
        HWID = hwid;
        UpdateHwidLabel();
        Console.WriteLine($"Call '{name}' hash:{hash:X} uid:{uid} hwid:{hwid:X}");
    }

    private void HandleUserMotion(string name, Message m)
    {
        int hash = ExtractHash(m.WParam); // hashed HWID
        int hit = ExtractUid(m.WParam);   // cursor hit code
        var (x, y) = ExtractCoordinates(m.LParam);
        if (HWID != -1)
        {
            for (int i = 0; i < LIST_SIZE; i++)
            {
                if (hash == hlist[i].hash)
                {
                    HWID = hlist[i].hwid;
                    UpdateHwidLabel();
                    break;
                }
            }
        }
        DrawLine(x, y);
        Console.WriteLine($"Call '{name}' hash:{hash:X} hit:{hit} pos:({x},{y})");
    }

    private void HandleUserButton(string name, Message m)
    {
        int hash = ExtractHash(m.WParam); // hashed HWID
        int flag = ExtractUid(m.WParam);  // button (bit) flag
        var (x, y) = ExtractCoordinates(m.LParam);
        // Use the DataButtonFlag enum for clarity
        var buttonFlags = (DataButtonFlag)flag;
        // Example: reset drawing on left button up
        if (buttonFlags.HasFlag(DataButtonFlag.DATA_BUTTON_FLAG_1_UP))
            lastPoint = null;
        Console.WriteLine($"Call '{name}' hash:{hash:X} button:{buttonFlags} pos:({x},{y})");
    }

    private void HandleUserVWheel(string name, Message m)
    {
        int hash = ExtractHash(m.WParam);
        int vWheel = ExtractUid(m.WParam); // wheel delta
        var (x, y) = ExtractCoordinates(m.LParam);
        Console.WriteLine($"Call '{name}' hash:{hash:X} v.wheel:{vWheel} pos:({x},{y})");
    }

    private void HandleUserHWheel(string name, Message m)
    {
        int hash = ExtractHash(m.WParam);
        int hWheel = ExtractUid(m.WParam); // wheel delta
        var (x, y) = ExtractCoordinates(m.LParam);
        Console.WriteLine($"Call '{name}' hash:{hash:X} h.wheel:{hWheel} pos:({x},{y})");
    }

    private void HandleUserKeyboard(string name, Message m)
    {
        int hash = ExtractHash(m.WParam);
        int l = ExtractUid(m.WParam);
        Console.WriteLine($"Call '{name}' hash:{hash:X} L:{l:X}");
    }

    private void DrawLine(int x, int y)
    {
        if (lastPoint == null)
        {
            lastPoint = new Point(x, y);
            return;
        }
        using (var g = Graphics.FromImage(drawingBitmap))
        {
            g.DrawLine(Pens.Blue, lastPoint.Value, new Point(x, y));
        }
        lastPoint = new Point(x, y);
        this.Invalidate();
    }

    private void UpdateHwidLabel()
    {
        hwidLabel.Text = $"HWID: {HWID}";
    }

    protected override void WndProc(ref Message m)
    {
        if (messageCodes == null)
            RegisterMessages();
        for (int i = 0; i < messageCodes.Length; i++)
        {
            if (m.Msg == messageCodes[i])
            {
                switch (i)
                {
                    case 1: HandleUserCreate(messageNames[i], m); break;
                    case 2: HandleUserDispose(messageNames[i], m); break;
                    case 3: HandleUserList(messageNames[i], m); break;
                    case 4: HandleUserMotion(messageNames[i], m); break;
                    case 5: HandleUserButton(messageNames[i], m); break;
                    case 6: HandleUserVWheel(messageNames[i], m); break;
                    case 7: HandleUserHWheel(messageNames[i], m); break;
                    case 8: HandleUserKeyboard(messageNames[i], m); break;
                    default: break;
                }
                return;
            }
        }
        base.WndProc(ref m);
    }

    public static void RunSDK()
    {
        Application.EnableVisualStyles();
        Application.SetCompatibleTextRenderingDefault(false);
        Application.Run(new MouseMuxSDK());
    }
}

"""
MouseMux SDK Python Example
---------------------------

This example demonstrates how to use the MouseMux SDK to monitor mouse events in real-time.
It creates a window that receives messages from MouseMux and displays:
- Mouse coordinates as the cursor moves
- Button clicks (left, right, middle, X1, X2)
- Vertical and horizontal wheel events
- User ID (hash) and HWID tracking

Requirements:
- Python 3.x
- pywin32 package (install with: pip install pywin32)
- MouseMux V2 with SDK enabled in the configuration

The program follows the SDK documentation for:
- Window message registration
- Parameter extraction from WPARAM and LPARAM
- Button flag definitions
- Event handling
- HWID tracking and lookup
- Using setter API to request user list

Usage:
1. Ensure MouseMux is running with SDK enabled
2. Run this script: python mousemux_monitor.py
3. Move the mouse and click buttons to see events in the console
4. Press Ctrl+C to exit

Note: This is a basic example focusing on mouse events. The SDK also supports
keyboard events and user creation/disposal events which are registered but not
handled in this example.
"""

import win32gui
import win32con
import win32api
import struct
from enum import IntFlag

# Windows coordinate extraction macros
def GET_X_LPARAM(lparam):
    return win32api.SignedLOWORD(lparam)

def GET_Y_LPARAM(lparam):
    return win32api.SignedHIWORD(lparam)

class DataButtonFlag(IntFlag):
    DATA_BUTTON_FLAG_1_DN = 1 << 0  # left down
    DATA_BUTTON_FLAG_1_UP = 1 << 1  # left up
    DATA_BUTTON_FLAG_2_DN = 1 << 2  # right down
    DATA_BUTTON_FLAG_2_UP = 1 << 3  # right up
    DATA_BUTTON_FLAG_3_DN = 1 << 4  # middle down
    DATA_BUTTON_FLAG_3_UP = 1 << 5  # middle up
    DATA_BUTTON_FLAG_4_DN = 1 << 6  # X1 down
    DATA_BUTTON_FLAG_4_UP = 1 << 7  # X1 up
    DATA_BUTTON_FLAG_5_DN = 1 << 8  # X2 down
    DATA_BUTTON_FLAG_5_UP = 1 << 9  # X2 up

class MouseMuxMonitor:
    def __init__(self):
        self.window_name = "mousemux-api-window-getter"
        self.setter_window_name = "mousemux-api-window-setter"
        self.message_names = [
            "mousemux.api.get.none",
            "mousemux.api.get.user.create",
            "mousemux.api.get.user.dispose",
            "mousemux.api.get.user.list",
            "mousemux.api.get.user.motion",
            "mousemux.api.get.user.button",
            "mousemux.api.get.user.v.wheel",
            "mousemux.api.get.user.h.wheel",
            "mousemux.api.get.user.keyboard"
        ]
        self.setter_message_names = [
            "mousemux.api.set.app.user.list"
        ]
        self.message_codes = {}
        self.setter_message_codes = {}
        self.register_messages()

        # HWID tracking
        self.LIST_SIZE = 64
        self.hwid_list = [{'hash': 0, 'hwid': 0} for _ in range(self.LIST_SIZE)]
        self.current_hwid = -1

    def register_messages(self):
        # Register getter messages
        for name in self.message_names:
            code = win32gui.RegisterWindowMessage(name)
            self.message_codes[code] = name
            print(f"Registered getter {name}: {code}")

        # Register setter messages
        for name in self.setter_message_names:
            code = win32gui.RegisterWindowMessage(name)
            self.setter_message_codes[code] = name
            print(f"Registered setter {name}: {code}")

    def request_user_list(self):
        """Request the list of current users from MouseMux"""
        setter_hwnd = win32gui.FindWindow(self.setter_window_name, self.setter_window_name)
        if setter_hwnd:
            list_message = self.setter_message_codes.get("mousemux.api.set.app.user.list")
            if list_message:
                print("Requesting user list from MouseMux...")
                win32gui.PostMessage(setter_hwnd, list_message, 0, 0)
            else:
                print("Failed to get user list message code")
        else:
            print("Could not find MouseMux setter window")

    def extract_coordinates(self, lparam):
        # Using Windows GET_X_LPARAM and GET_Y_LPARAM macros
        x = GET_X_LPARAM(lparam)
        y = GET_Y_LPARAM(lparam)
        return x, y

    def extract_params(self, wparam):
        hash = win32api.LOWORD(wparam)
        uid = win32api.HIWORD(wparam)
        return hash, uid

    def lookup_hwid(self, hash):
        """Look up the full HWID using the hashed HWID"""
        for entry in self.hwid_list:
            if entry['hash'] == hash:
                return entry['hwid']
        return -1

    def wnd_proc(self, hwnd, msg, wparam, lparam):
        if msg in self.message_codes:
            name = self.message_codes[msg]

            if name == "mousemux.api.get.user.create":
                hash = win32api.LOWORD(wparam)  # hashed 16-bit HWID
                uid = win32api.HIWORD(wparam)   # user id
                hwid = lparam                    # full 32-bit HWID
                print(f"User created - Hash: {hash:X}, UID: {uid}, HWID: {hwid:X}")

            elif name == "mousemux.api.get.user.dispose":
                hash = win32api.LOWORD(wparam)
                uid = win32api.HIWORD(wparam)
                hwid = lparam
                print(f"User disposed - Hash: {hash:X}, UID: {uid}, HWID: {hwid:X}")

            elif name == "mousemux.api.get.user.list":
                hash = win32api.LOWORD(wparam)
                uid = win32api.HIWORD(wparam)
                hwid = lparam
                self.hwid_list[uid]['hash'] = hash
                self.hwid_list[uid]['hwid'] = hwid
                self.current_hwid = hwid
                print(f"User listed - Hash: {hash:X}, UID: {uid}, HWID: {hwid:X}")

            elif name == "mousemux.api.get.user.motion":
                hash, uid = self.extract_params(wparam)
                x, y = self.extract_coordinates(lparam)
                hwid = self.lookup_hwid(hash)
                if hwid != -1:
                    self.current_hwid = hwid
                print(f"Mouse moved - Hash: {hash:X}, HWID: {hwid:X}, Position: ({x}, {y})")

            elif name == "mousemux.api.get.user.button":
                hash, uid = self.extract_params(wparam)
                x, y = self.extract_coordinates(lparam)
                button_flags = DataButtonFlag(uid)
                hwid = self.lookup_hwid(hash)
                if hwid != -1:
                    self.current_hwid = hwid
                print(f"Button event - Hash: {hash:X}, HWID: {hwid:X}, {button_flags} at ({x}, {y})")

            elif name == "mousemux.api.get.user.v.wheel":
                hash, delta = self.extract_params(wparam)
                x, y = self.extract_coordinates(lparam)
                hwid = self.lookup_hwid(hash)
                if hwid != -1:
                    self.current_hwid = hwid
                print(f"Vertical wheel - Hash: {hash:X}, HWID: {hwid:X}, Delta: {delta} at ({x}, {y})")

            elif name == "mousemux.api.get.user.h.wheel":
                hash, delta = self.extract_params(wparam)
                x, y = self.extract_coordinates(lparam)
                hwid = self.lookup_hwid(hash)
                if hwid != -1:
                    self.current_hwid = hwid
                print(f"Horizontal wheel - Hash: {hash:X}, HWID: {hwid:X}, Delta: {delta} at ({x}, {y})")

        return win32gui.DefWindowProc(hwnd, msg, wparam, lparam)

    def run(self):
        # Register window class
        wc = win32gui.WNDCLASS()
        wc.lpszClassName = self.window_name
        wc.lpfnWndProc = self.wnd_proc
        win32gui.RegisterClass(wc)

        # Create window
        hwnd = win32gui.CreateWindow(
            wc.lpszClassName,
            self.window_name,
            win32con.WS_OVERLAPPEDWINDOW,
            0, 0, 400, 300,
            0, 0, 0, None
        )

        print("MouseMux monitor started. Press Ctrl+C to exit.")
        win32gui.ShowWindow(hwnd, win32con.SW_SHOW)

        # Request initial user list
        self.request_user_list()

        try:
            while True:
                win32gui.PumpWaitingMessages()
        except KeyboardInterrupt:
            print("\nExiting...")
            win32gui.DestroyWindow(hwnd)

if __name__ == "__main__":
    monitor = MouseMuxMonitor()
    monitor.run()
